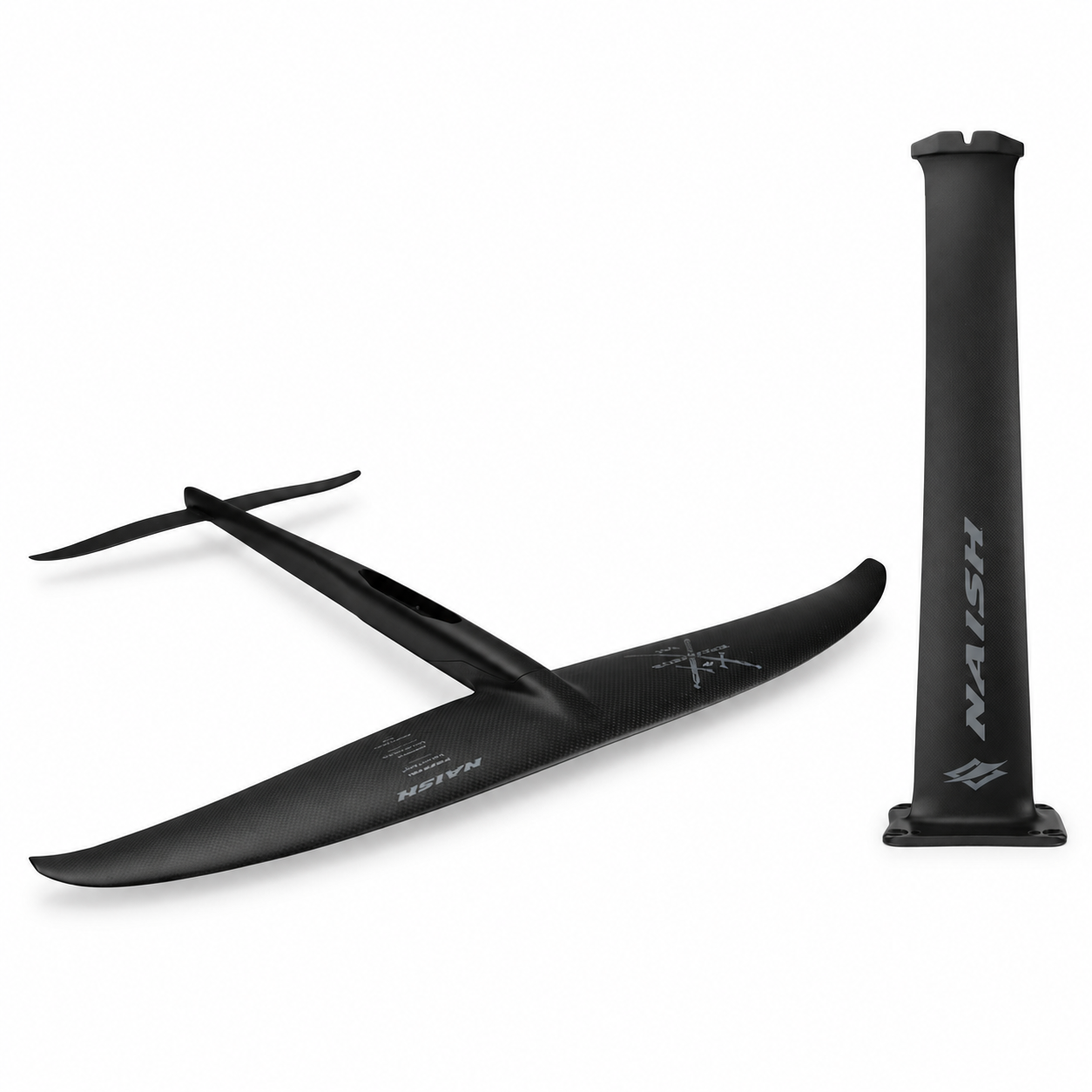

Naish Excalibur Complete Hydrofoil Set with 2026 HM Carbon Mast
Naish Excalibur Complete Hydrofoil Set with 2026 HM Carbon Mast
Choose your Excalibur front-wing size and new HM Carbon mast length in one complete Naish hydrofoil package. Each set includes the 2026 Excalibur semi-complete with its factory-paired E-series stabiliser and 64 cm Alpha fuselage, plus your selected 2026 high-modulus carbon mast.

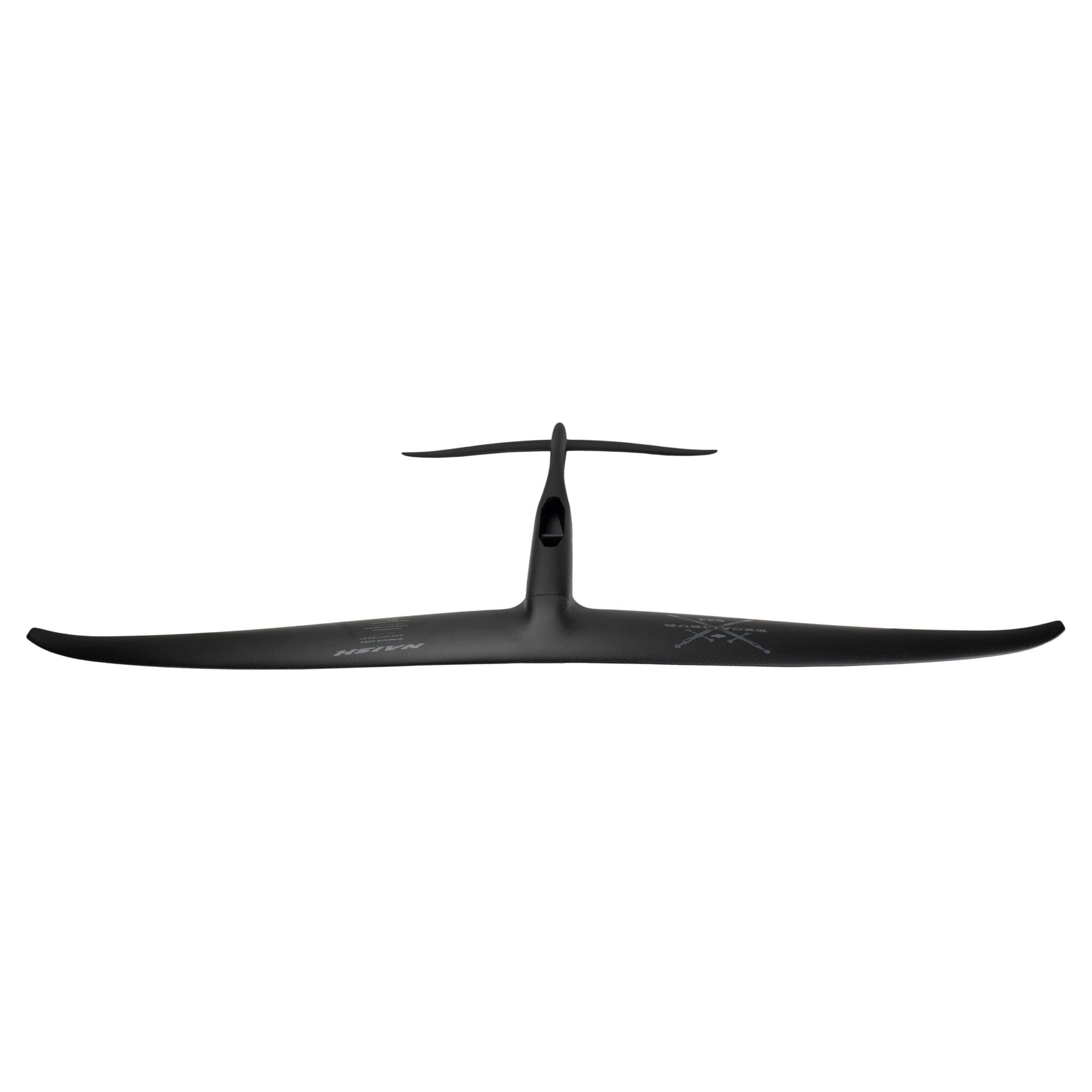

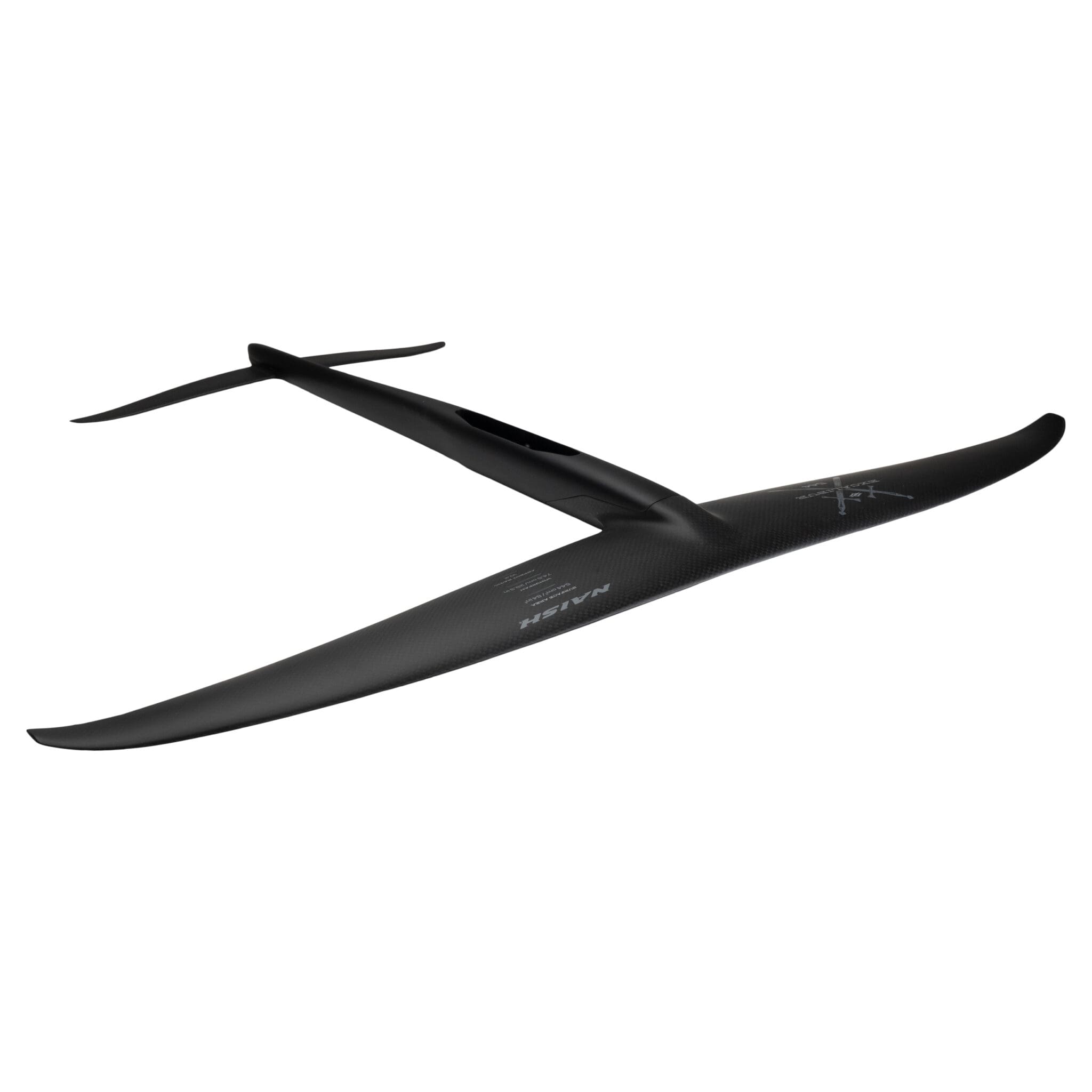

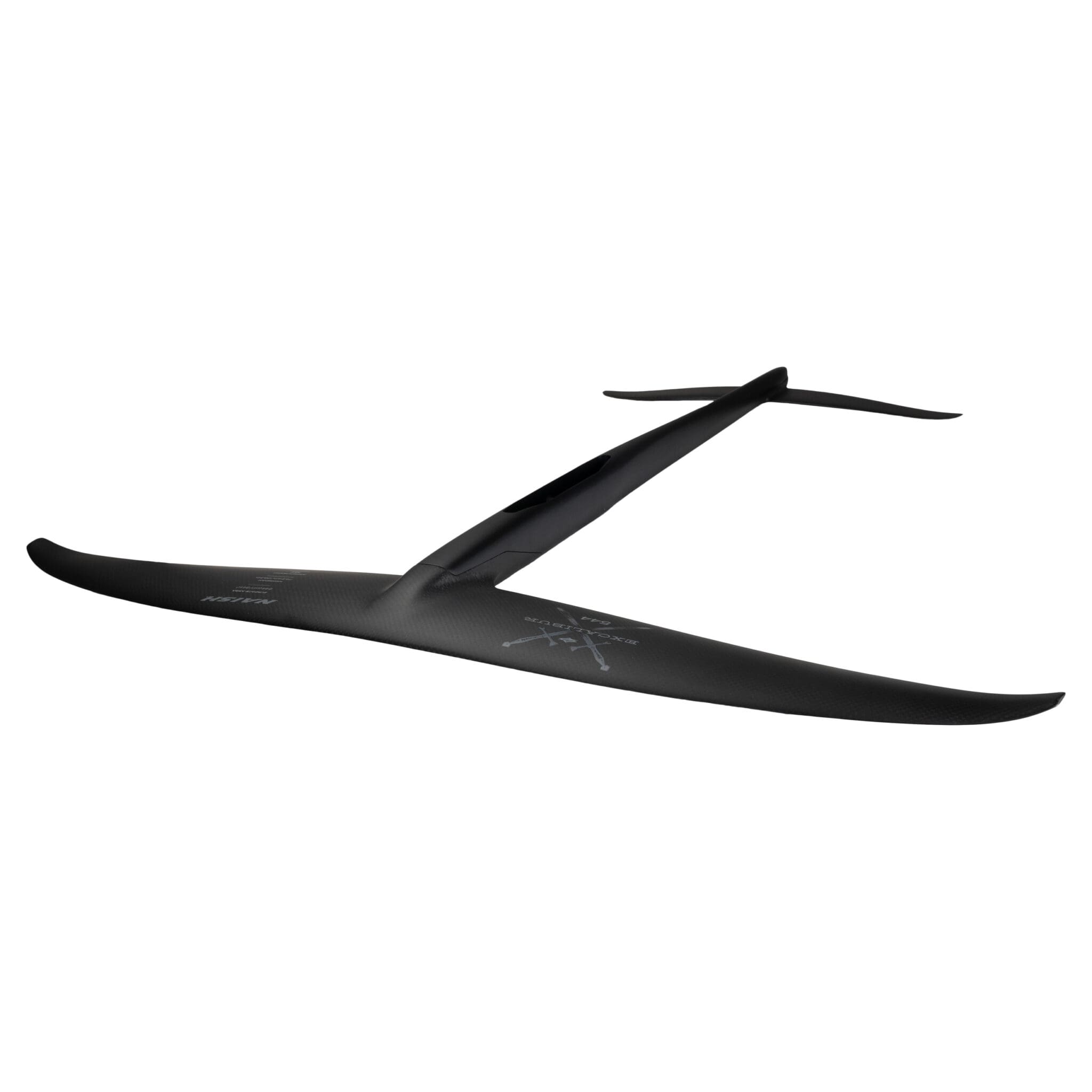

Glide, pump and carve
The Excalibur combines a high-aspect outline with a high-camber profile for efficient glide and accessible low-speed lift. Upturned tips support controlled turns and recovery from ventilation. It suits riders linking bumps, connecting waves and carrying speed across wing, parawing, prone and downwind sessions.

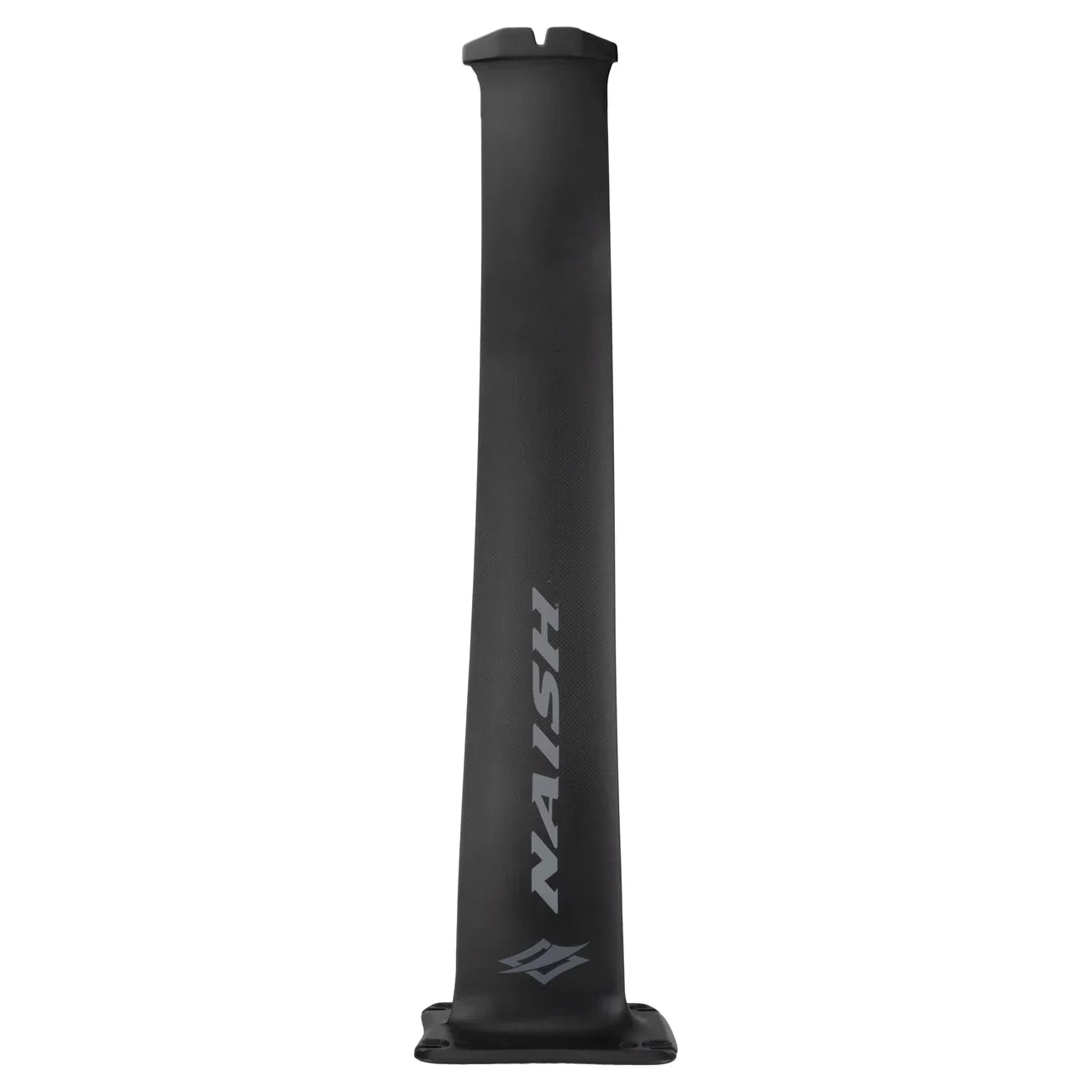

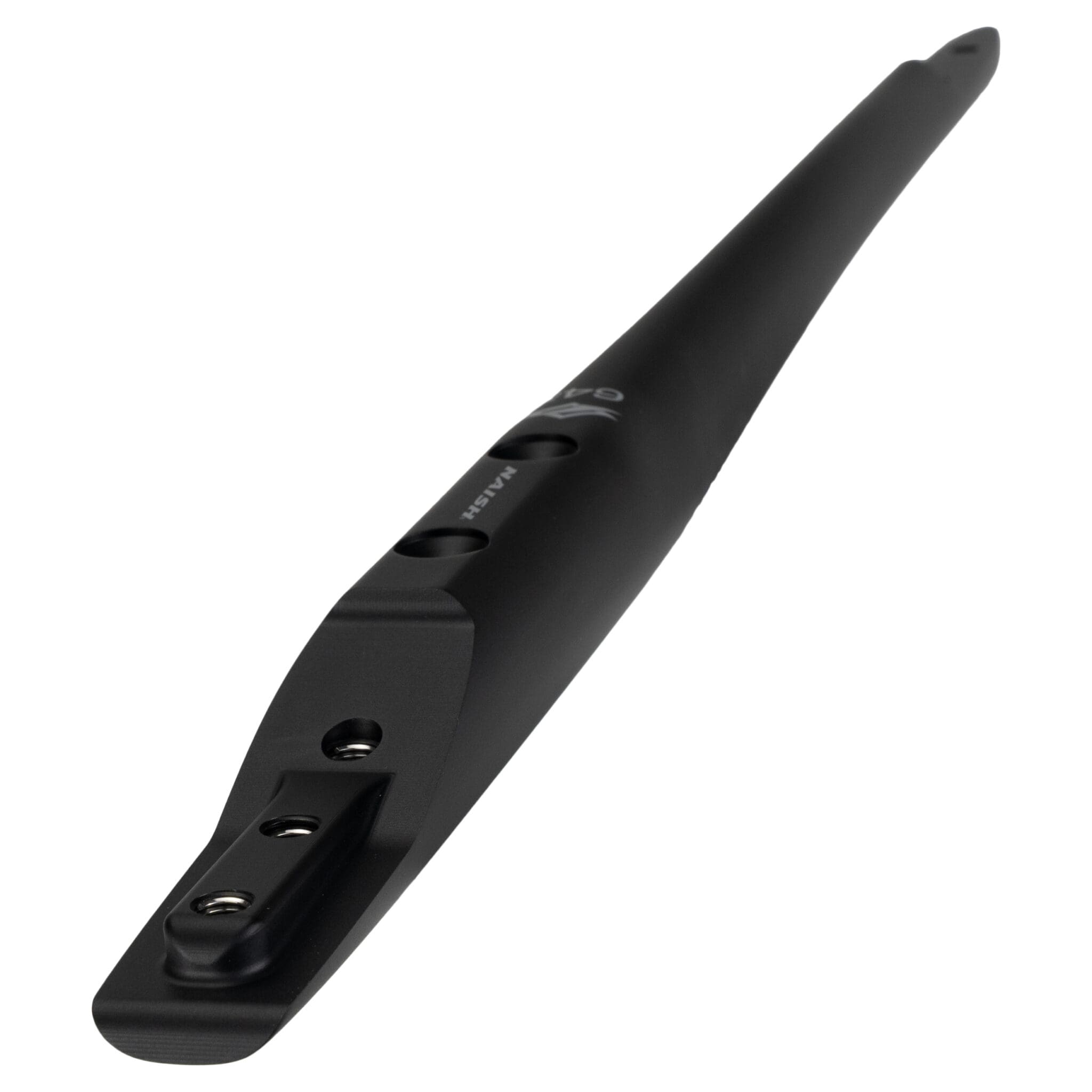

The new HM Carbon mast

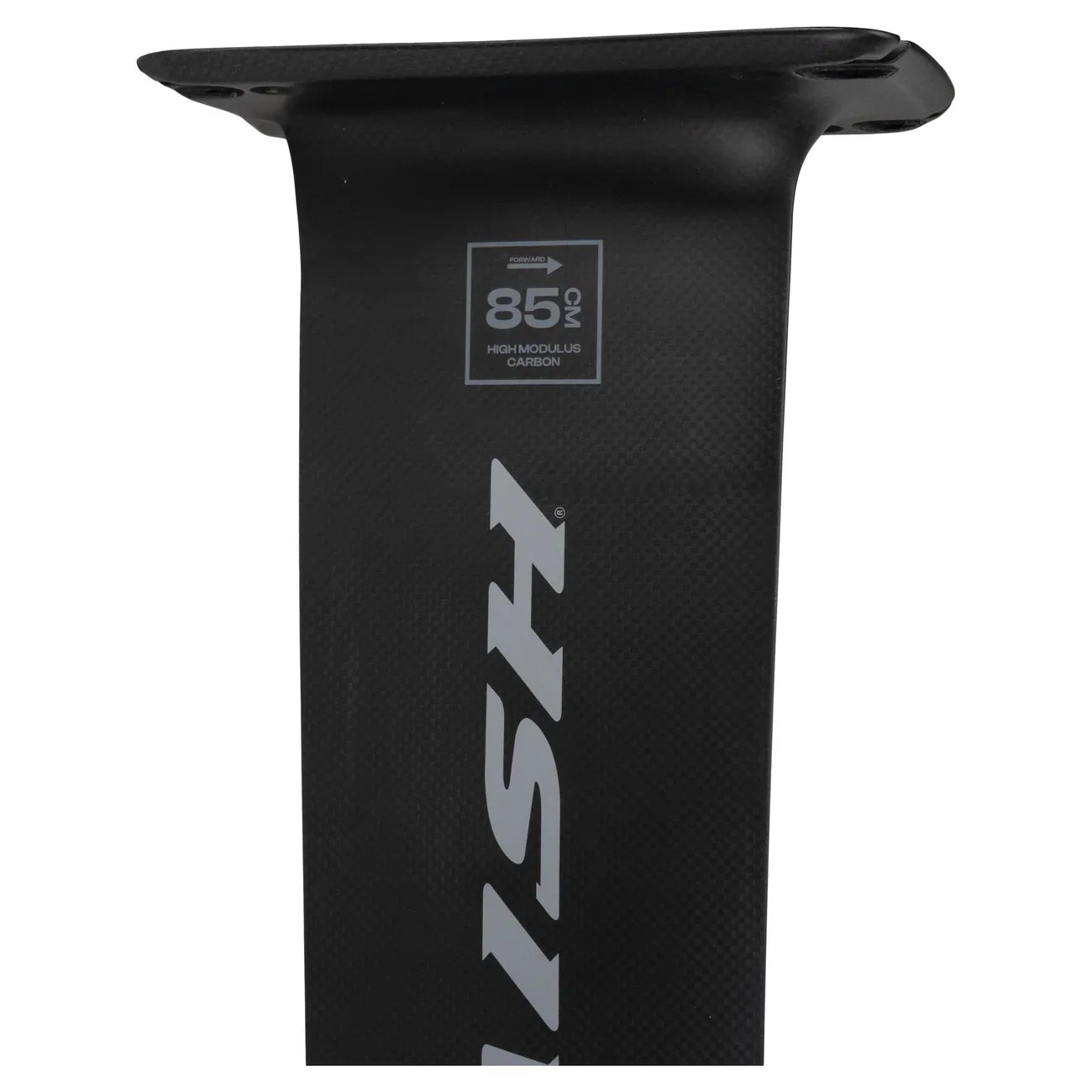

Naish's 2026 High Modulus Carbon mast provides a stiff, direct connection between board and foil. Its minimum 115 mm chord and 15.5 mm thickness balance efficiency, turning response and rigidity. This package uses the new 2026 HM model in 75, 80 or 85 cm.

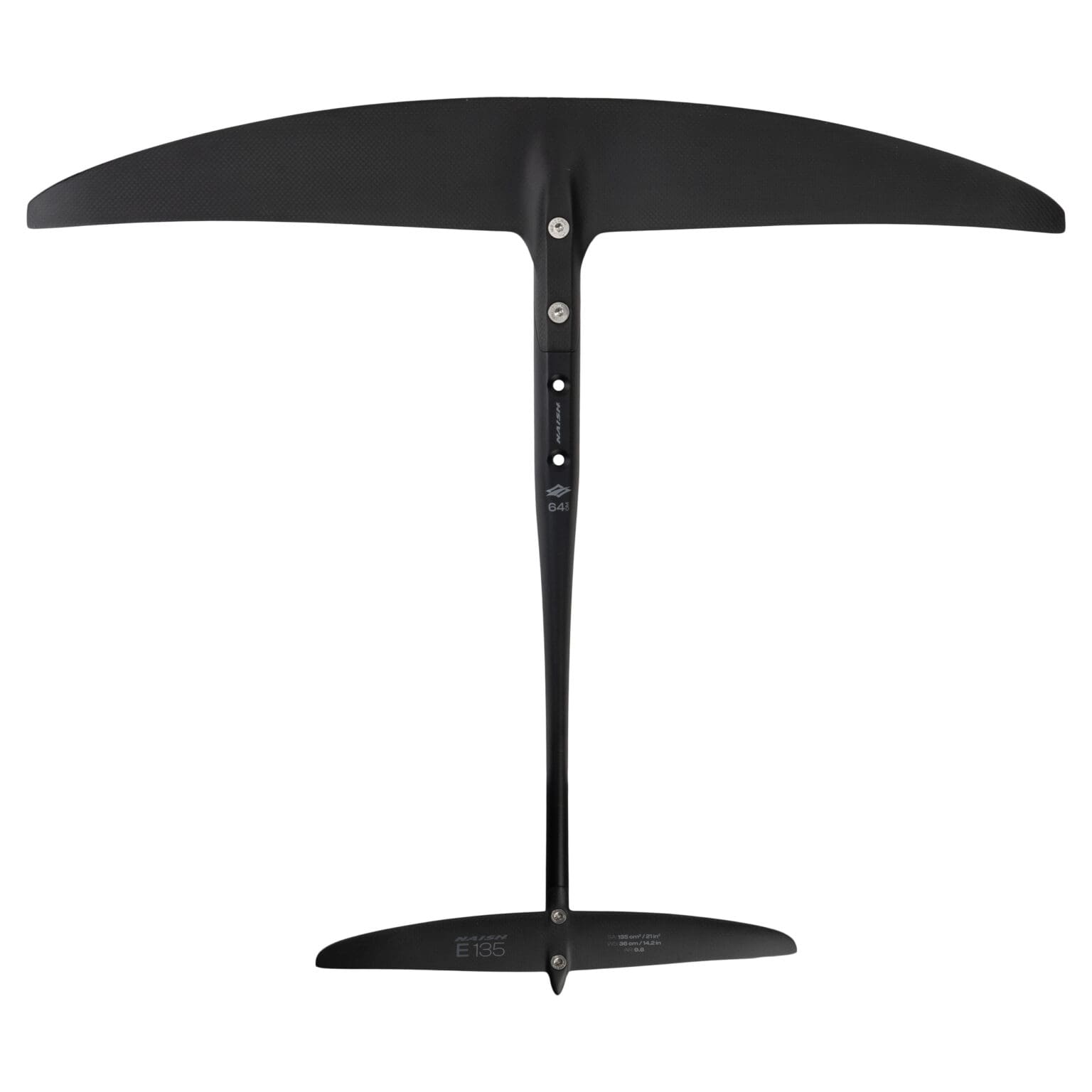

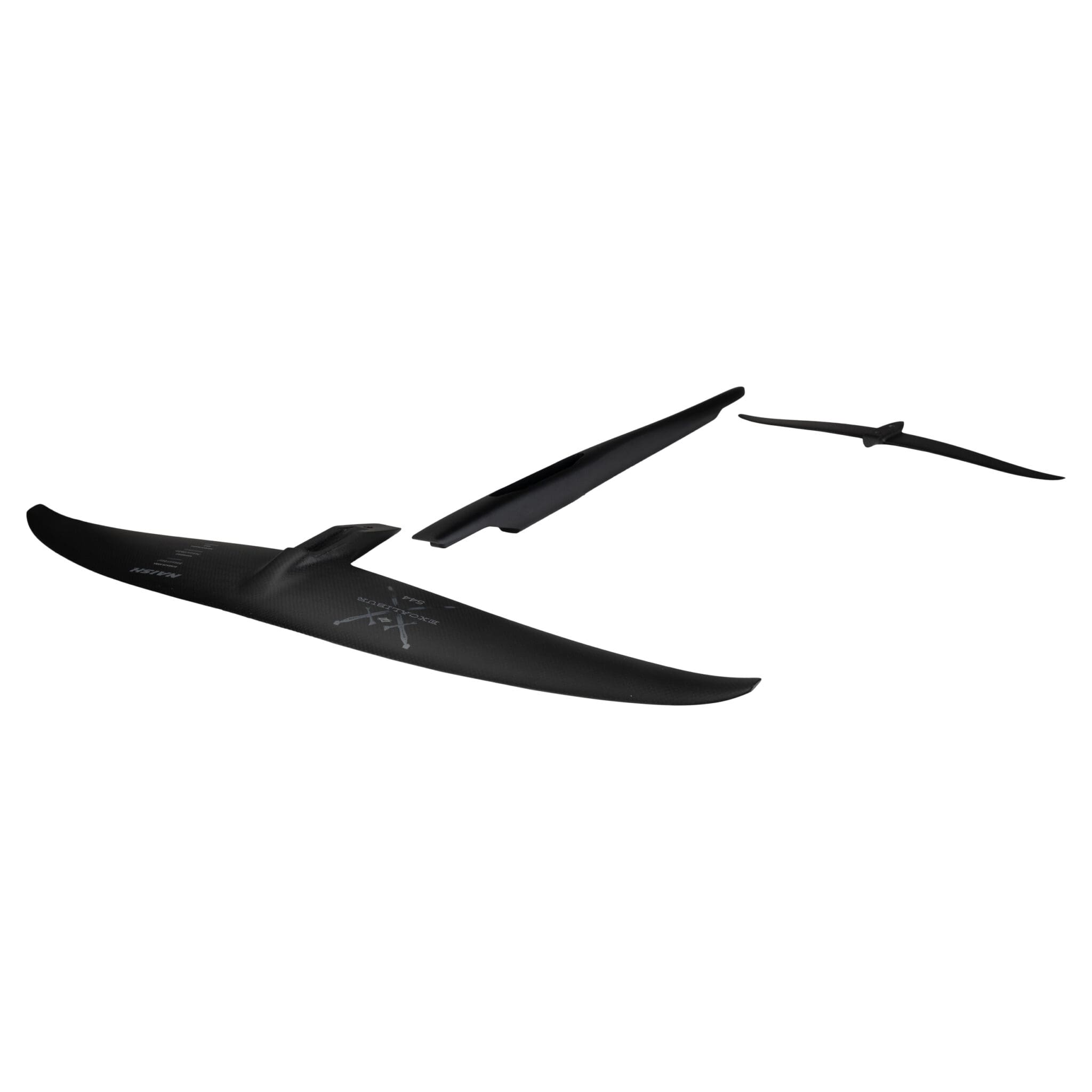

What's included
- Front wing: 2026 Naish Excalibur in your selected size: 544, 644, 744, 844, 944, 1044, 1144, 1344 or 1544 cm².
- Rear stabiliser: Factory-paired Naish E-series stabiliser as listed below.
- Fuselage: 64 cm Naish Alpha aluminium fuselage, supplied with the Excalibur semi-complete.

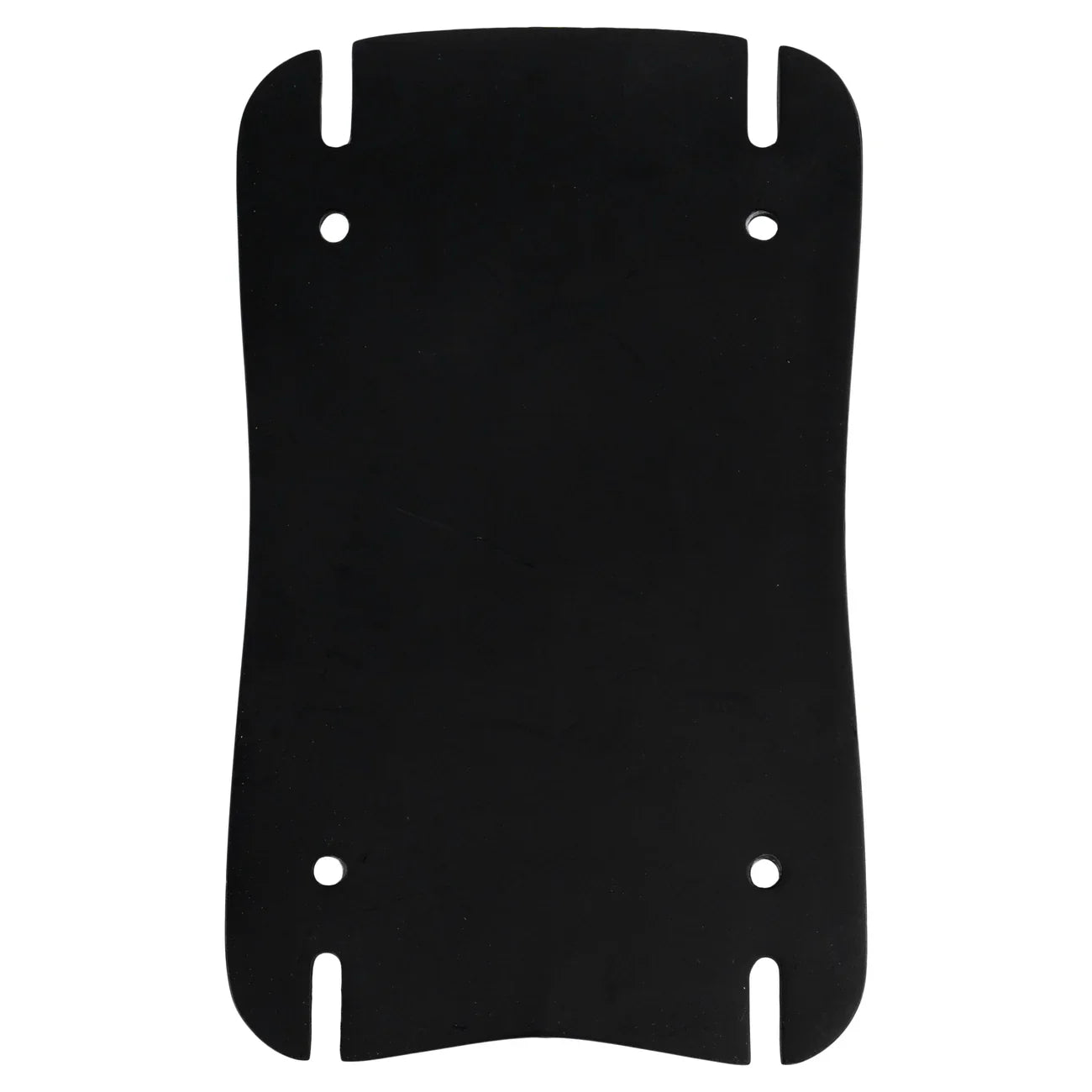

- Mast: 2026 Naish HM Carbon mast with board mounting plate, selected length 75, 80 or 85 cm.
- Accessories: Front-wing and stabiliser covers, foil assembly hardware and T30 tool supplied with the semi-complete. The HM mast includes mast-to-fuselage screws and mast-to-board mounting screws and washers.

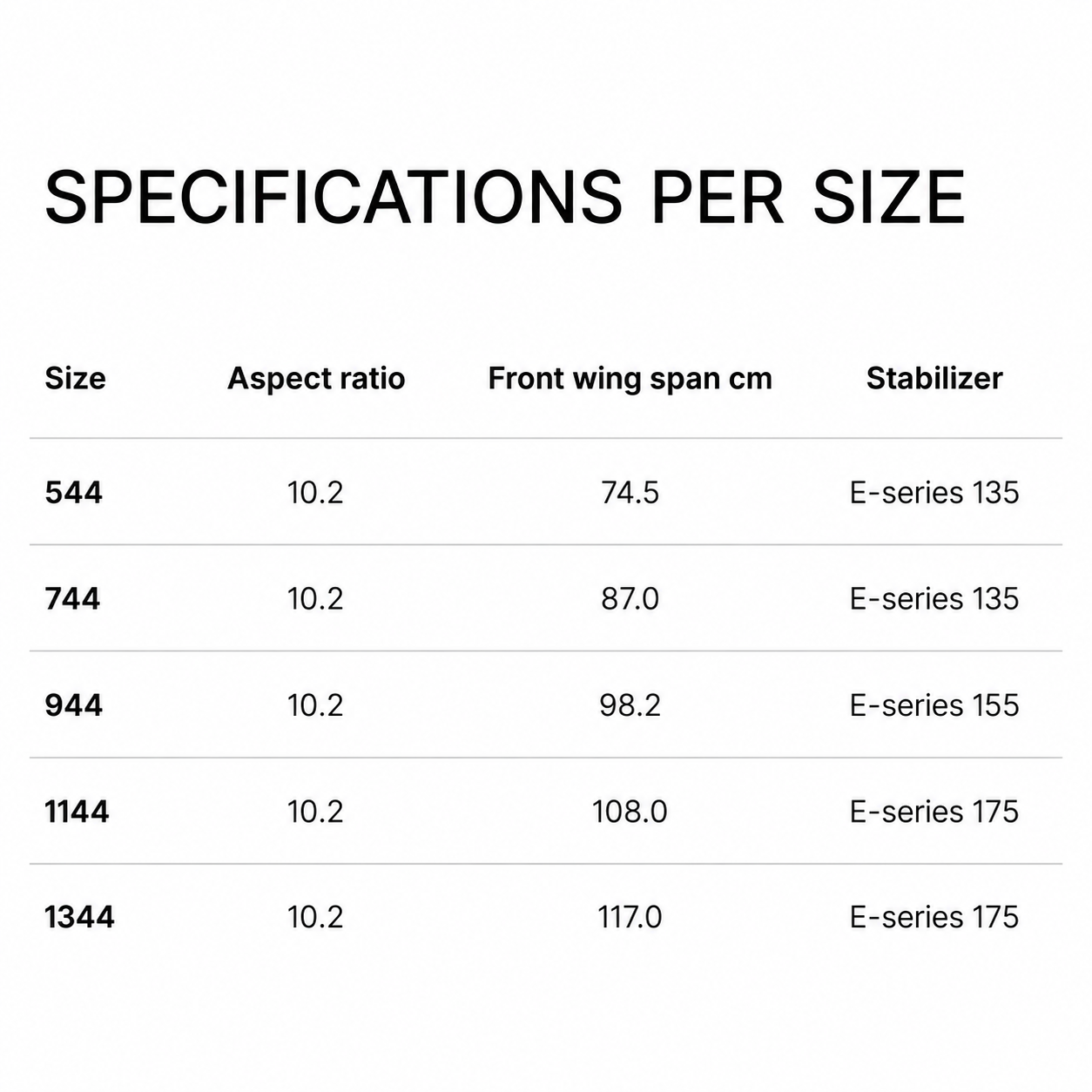

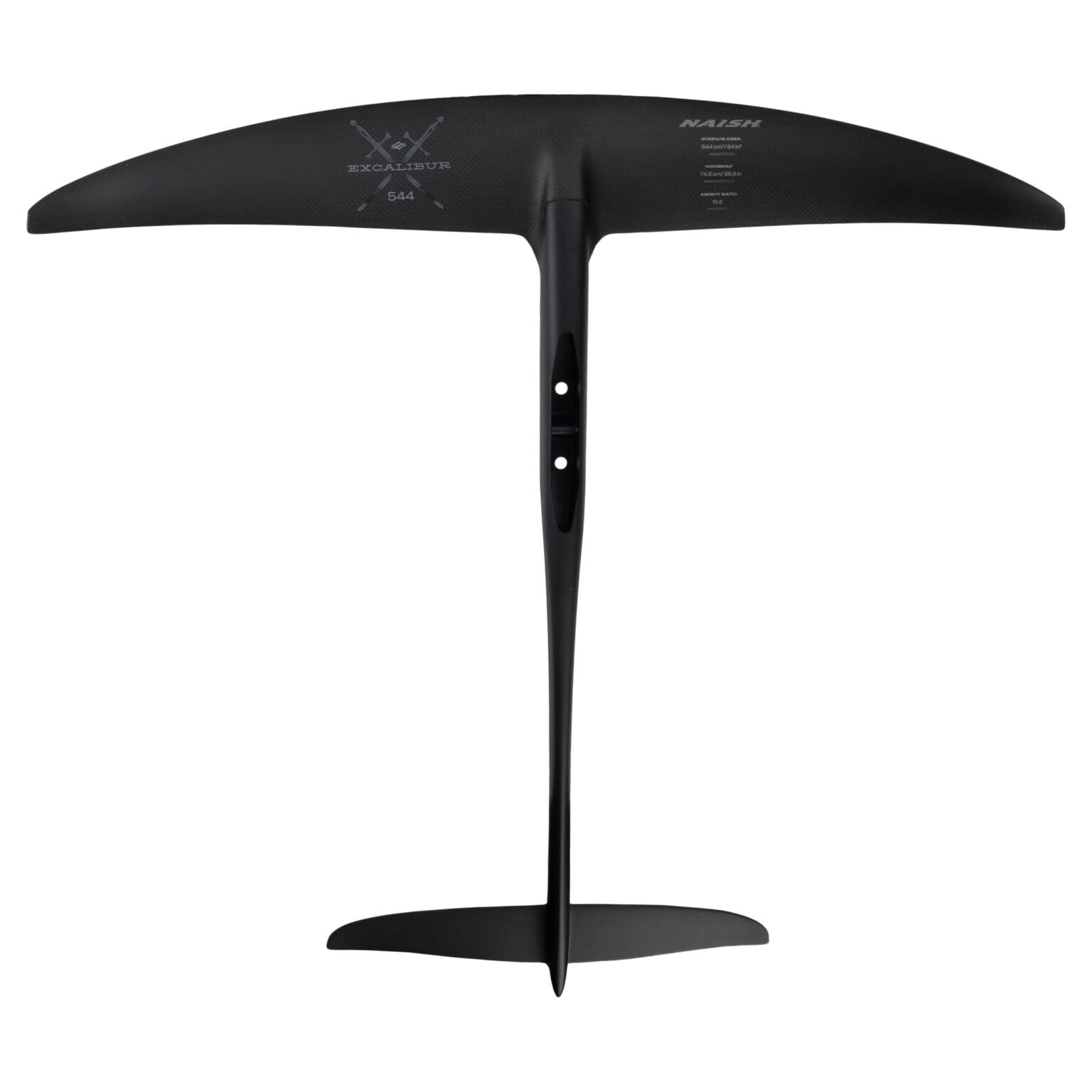

Front-wing and included stabiliser
The rear wing is included in the semi-complete and follows your front-wing selection. No separate stabiliser purchase or selection is required.
| Excalibur front wing | Included E-series stabiliser | Fuselage |
|---|---|---|
| 544 cm² | E135 — 135 cm² | 64 cm Alpha |
| 644 cm² | E135 — 135 cm² | 64 cm Alpha |
| 744 cm² | E135 — 135 cm² | 64 cm Alpha |
| 844 cm² | E155 — 155 cm² | 64 cm Alpha |
| 944 cm² | E155 — 155 cm² | 64 cm Alpha |
| 1044 cm² | E155 — 155 cm² | 64 cm Alpha |
| 1144 cm² | E175 — 175 cm² | 64 cm Alpha |
| 1344 cm² | E175 — 175 cm² | 64 cm Alpha |
| 1544 cm² | E175 — 175 cm² | 64 cm Alpha |
Choose your mast length
- 75 cm: Compact ride height for flatter water and riders who prefer a shorter mast.
- 80 cm: A middle option balancing ride height and manoeuvrability.
- 85 cm: More clearance for chop, swell and deeper-water sessions.
Package scope: Hydrofoil assembly only. Foilboard, handheld wing, parawing and foil-assist motor are sold separately. Confirm supplied board mounting hardware suits your board before assembly.

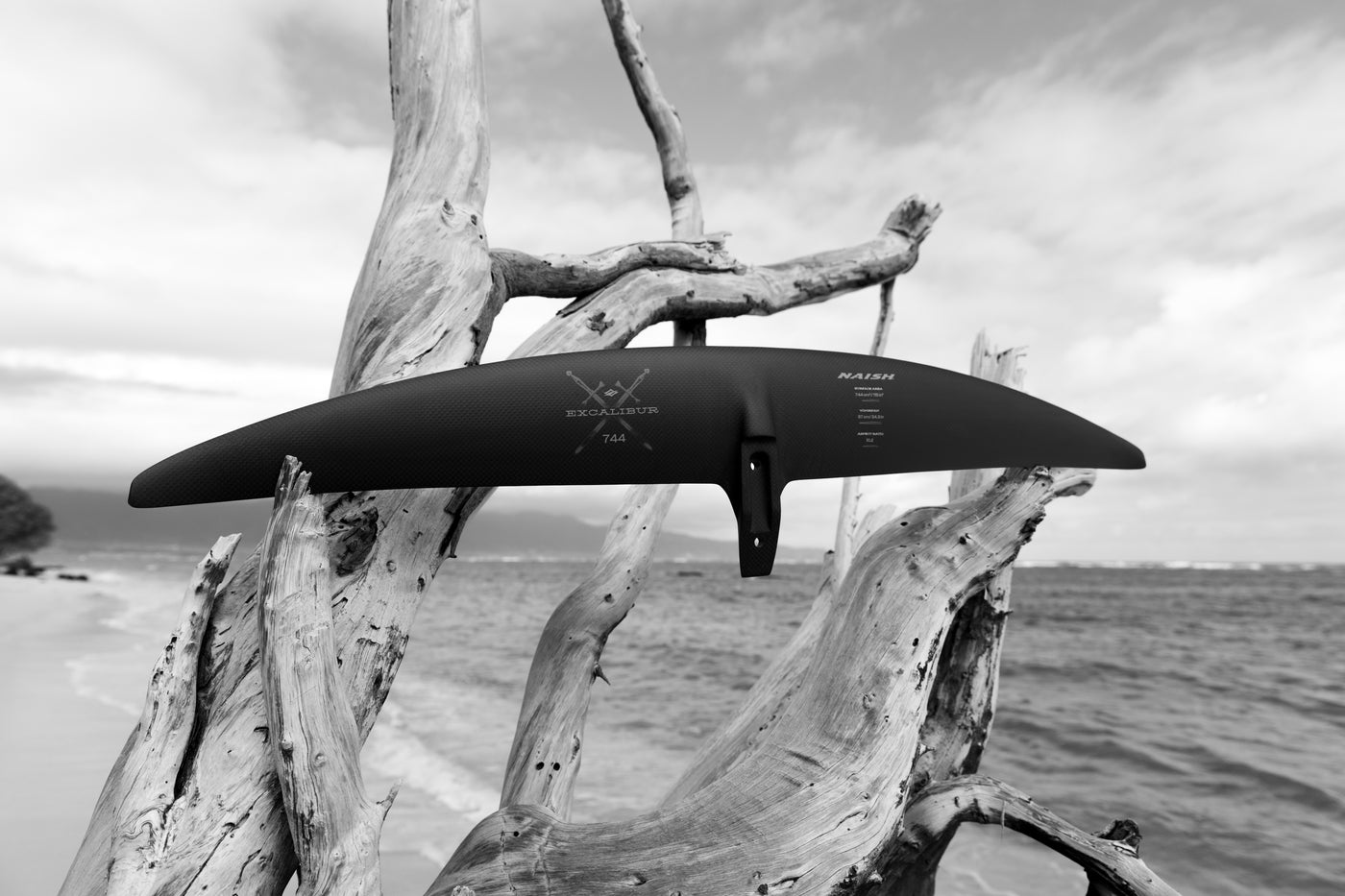

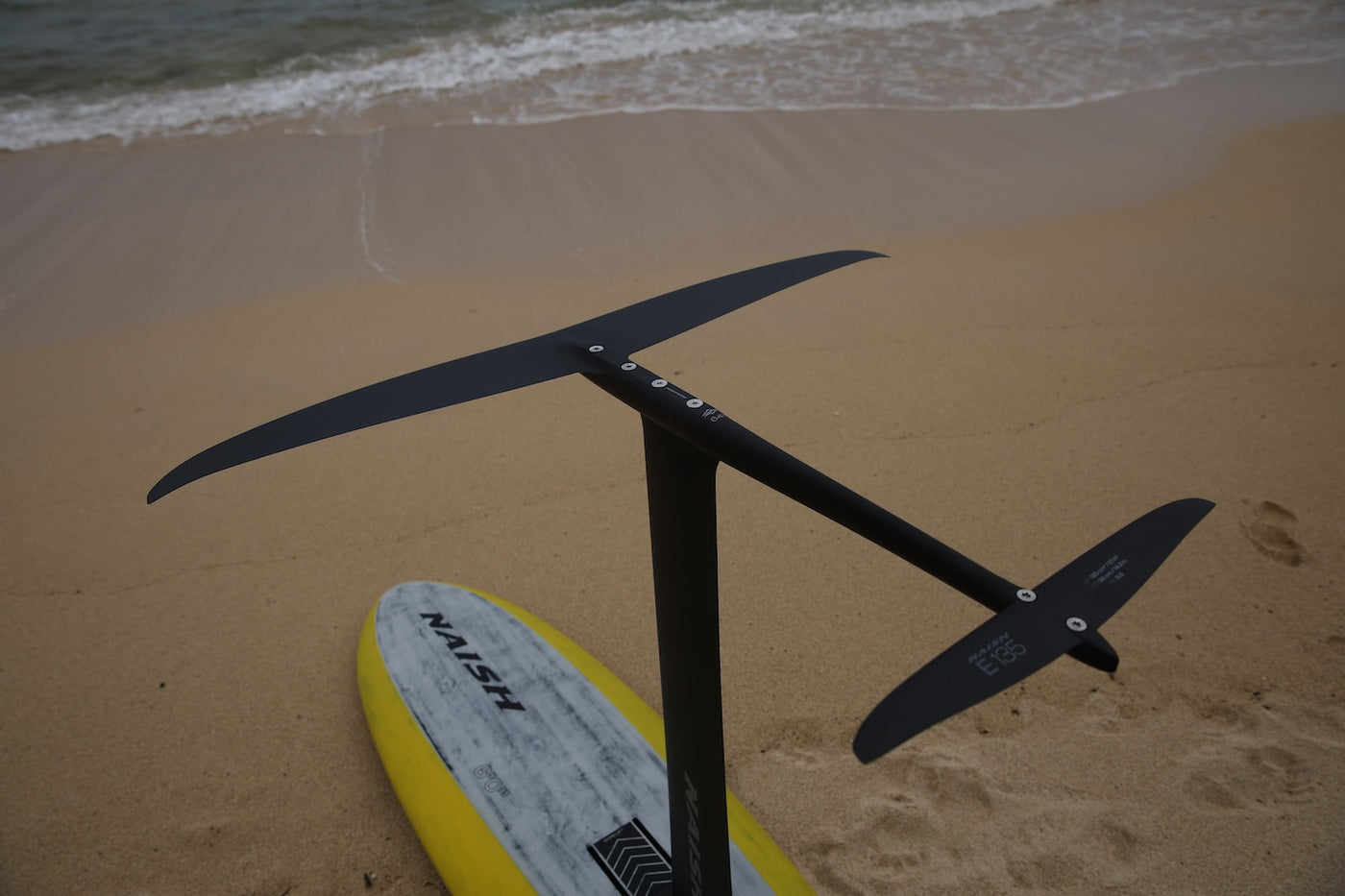

Image guide: Package and component images illustrate the product range; supplied wing, stabiliser and mast sizes follow your selection. Promotional action images and videos may show other equipment.
